I’m currently working with some exoplanet transit images I captured last year using CCDCiel. I’m trying to load the target coordinates and observatory location into the DP Coordinate Converter directly from the FITS header, but I’m running into some issues.
I’ve already configured the appropriate FITS header keywords under General FITS Header Settings:
These headers are indeed present in my science images:

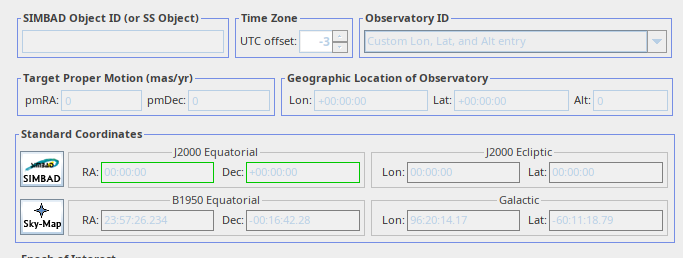

However, when I try to load this information from the header:

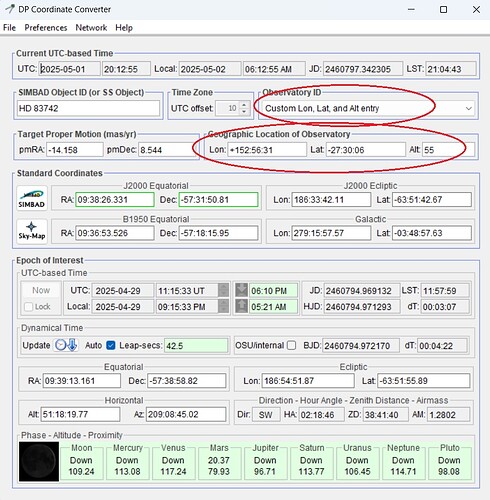

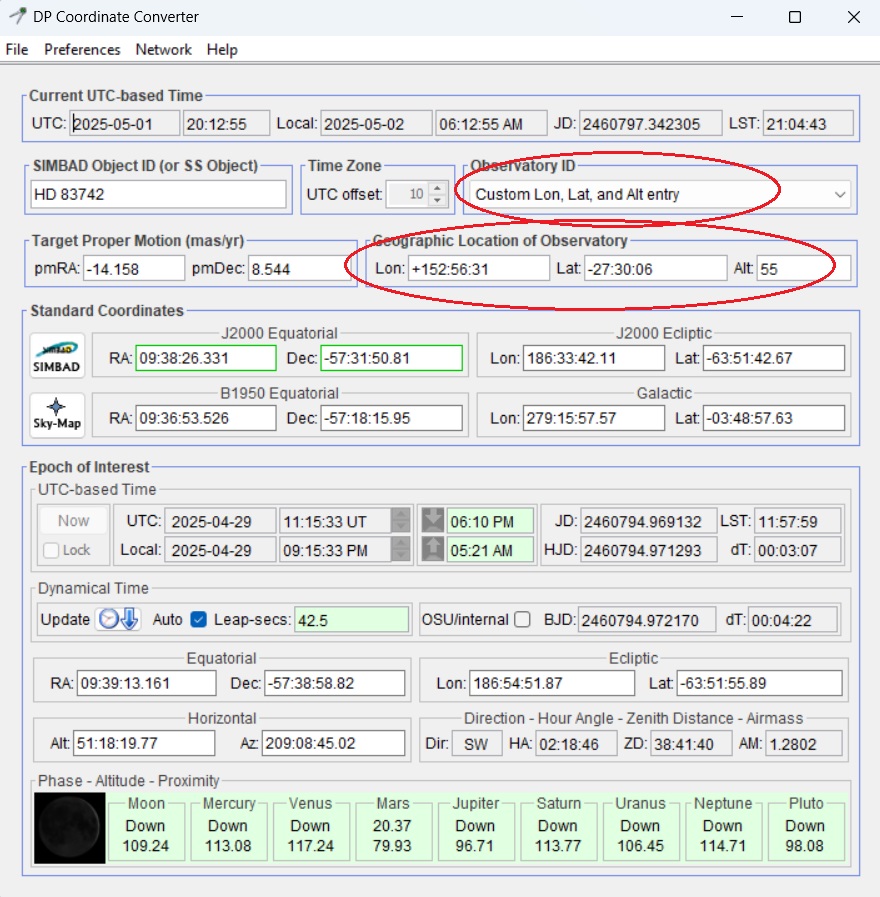

I can’t solve your problem directly, but there is an alternative setup in DPCC if you can’t otherwise process your data. See screenshot below.
In Observatory ID, select Custom Lon, Lat, and Alt entry. In Geographic Location of Observatory, enter your geographical coordinates and altitude manually. I also enter the ID of the target manually in the SIMBAD Object ID box near the top left, then press enter.
Thank you very much for your response and for sharing this helpful workaround. I’ve followed your recommendation and successfully processed the images.
Hi Joaquin,
I noticed a typo in your FITS Header Input Settings: the target RA and DEC keywords are shown as OBJECTRA whereas the FITS header shows OBJCTRA, note the missing ‘E’.
I couldn’t find any obvious problem with the SITE data though.
Perhaps this will help a little.
Byron
Byron, you’re absolutely right—I had used the wrong keyword!
I corrected the keyword name, but it still didn’t work. I didn’t realize this on my own—I later learned (from a question I posted on the official forum) that AstroImageJ only loads header values once it begins processing the images.
After processing them, the RA and DEC values were correctly populated.
