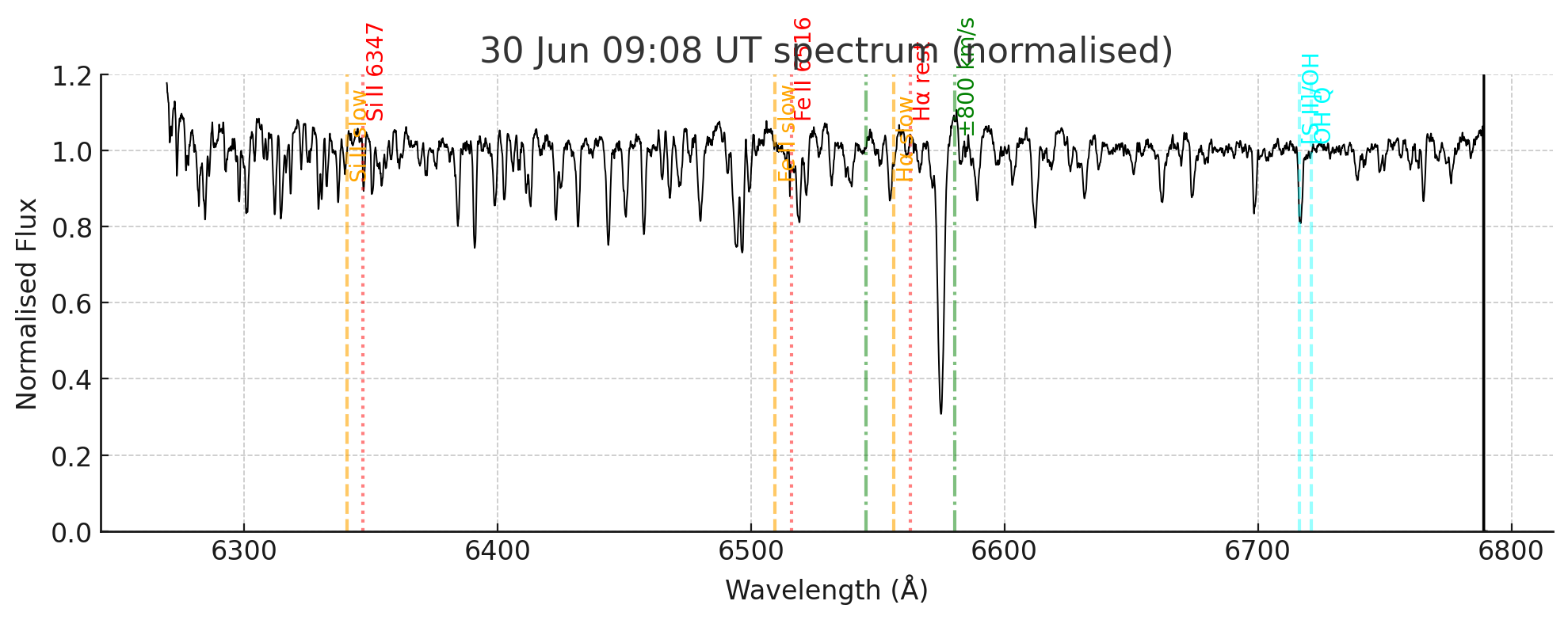

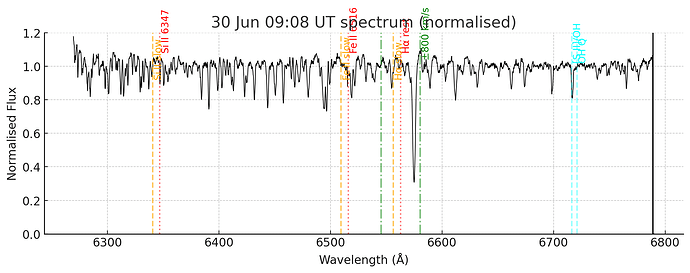

Observing Campaign #897: Possible nova in Vel: PNV J10251200-5331109

1 Continuum & overall morphology

Property Measurement Interpretation
Continuum slope (6520–6750 Å) –2 % per 100 Å (slightly red-tilted) Photospheric T ≈ 9–10 kK, still fireball-like; no sign yet of bluer, hotter WD pseudophotosphere.
S/N (1-pixel) ≈ 30–40 Good enough for 5 %-level EW work.
Normalisation Median filter (201 pix) – preserves real wings ≥ 7 Å wide.

2 Balmer H α profile

Quantity Value Change since 28 Jun Physical meaning
Core depth 0.71 +0.03 (within noise) Slow torus (–300 km s⁻¹) still optically thick.
Equivalent width (absorption) 2.3 ± 0.1 Å from 3.0 Å Absorption column has begun to decrease – shell starting to thin.
10 % wing width 35 Å (≈ ±800 km s⁻¹) from ±400 km s⁻¹ First appearance of broad emission shoulders → fast polar wind now visible.
Emission above continuum None detectable yet (F/Fcont < 1) Next step will be true P-Cyg.

Status: the spectrum captures the moment of optical shock breakout – wings present, but core still dominates.


3 Slow-flow (–300 km s⁻¹) absorption forest

Rest λ (Å) Shifted λ EW (Å) Comment
Si II 6347 6335.5 0.24 Strengthened since 28 Jun; part of torus.
Si II 6371 6359.6 0.19 Blended with weaker Fe II lines.
Fe II 6516 6503.7 0.48 Deepest metal line; unchanged central RV.
Possible Fe II 6456 6444 0.07 Marginal at this S/N.

⟹ Velocities all cluster at v ≈ –300 ± 15 km s⁻¹, confirming a single, slow equatorial component that continues to blanket the continuum.

7 Interpretation timeline (updated)

Date (UT) Spectral stage Key tracer
26 Jun Fireball; narrow Balmer absorption EW = 1.3 Å, depth 0.27
28 Jun Absorption maximum EW peak ≈ 3.0 Å
30 Jun Shock breakout begins Wings to ±800 km s⁻¹, EW falling
01–02 Jul (predicted) P-Cyg / full emission Depth ↓ to < 0.3, first He I, Fe II 5018 emission
05 Jul + Nebular onset [O I] 6300, [N II] 6548/83

Conclusion : It shows a textbook Fe-II nova right at the cusp of the optical breakout, in step with the γ-ray rise reported by Fermi.

That was chatgpt analysis of the latest spectrum that I am yet acquiring. Let´s see if it makes sense or if it is trash.

2 Likes

Hi,

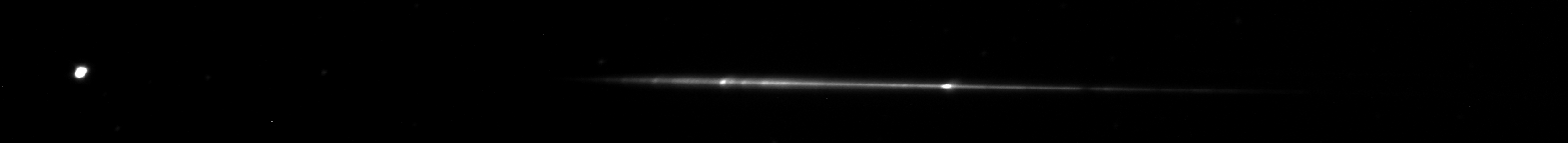

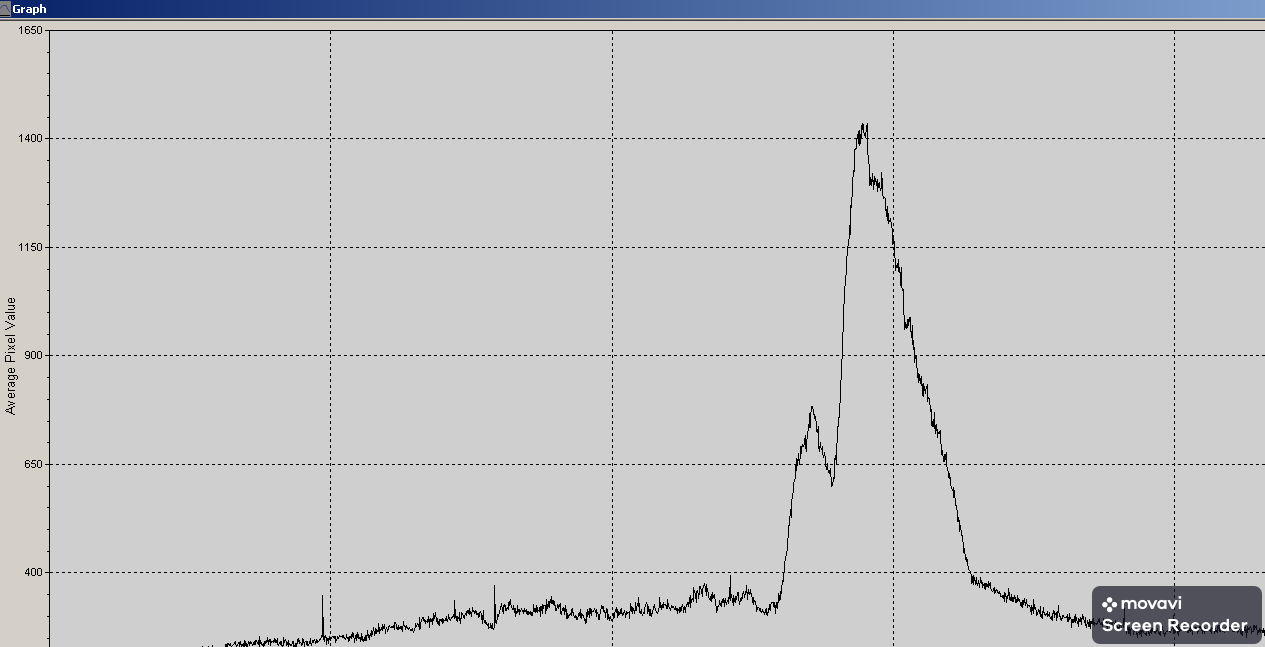

I’m a complete newby at this spectroscopy game but this evening a rough capture with a Star Analyser 100 is showing an emission dominated spectrum in contrast to most of the discussion to date. At the moment, I don’t have a way to calibrate or instrument response correct this image so I am offering it only as a qualitative image. I do have a loan Spectra L200 at hand and will give it a try tomorrow night (V752 Vel is already quite low in the sky for now) although I have never done anything this faint before and haven’t crossed the IR cal process yet.

12" SCT - 10 second exposure with a ZWO ASI174MM with SA100 - camera to grating separation approx 85mm.

Thanks,
Steve Kerr (KSH)

PS - Time = 1 July 2025 - 10:12 UTC

1 Like

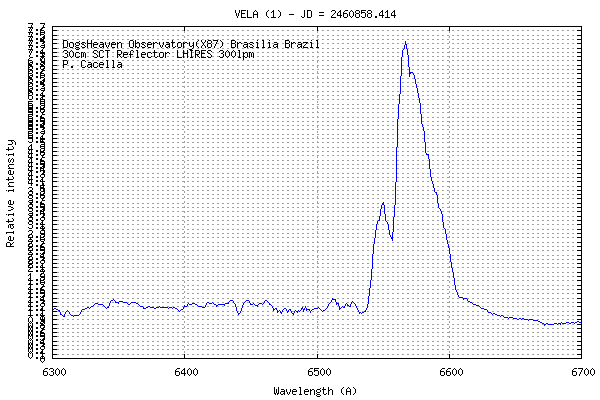

Indeed very strong. Tonight, weather permitting I ll get some more.

Steve,

I would highly encourage you to go through the process of extracting the spectra and calibrating it. There aren’t too many observations of this novae in AVSpec to date, so your data could be incredibly useful to researchers.

Brian

1 Like

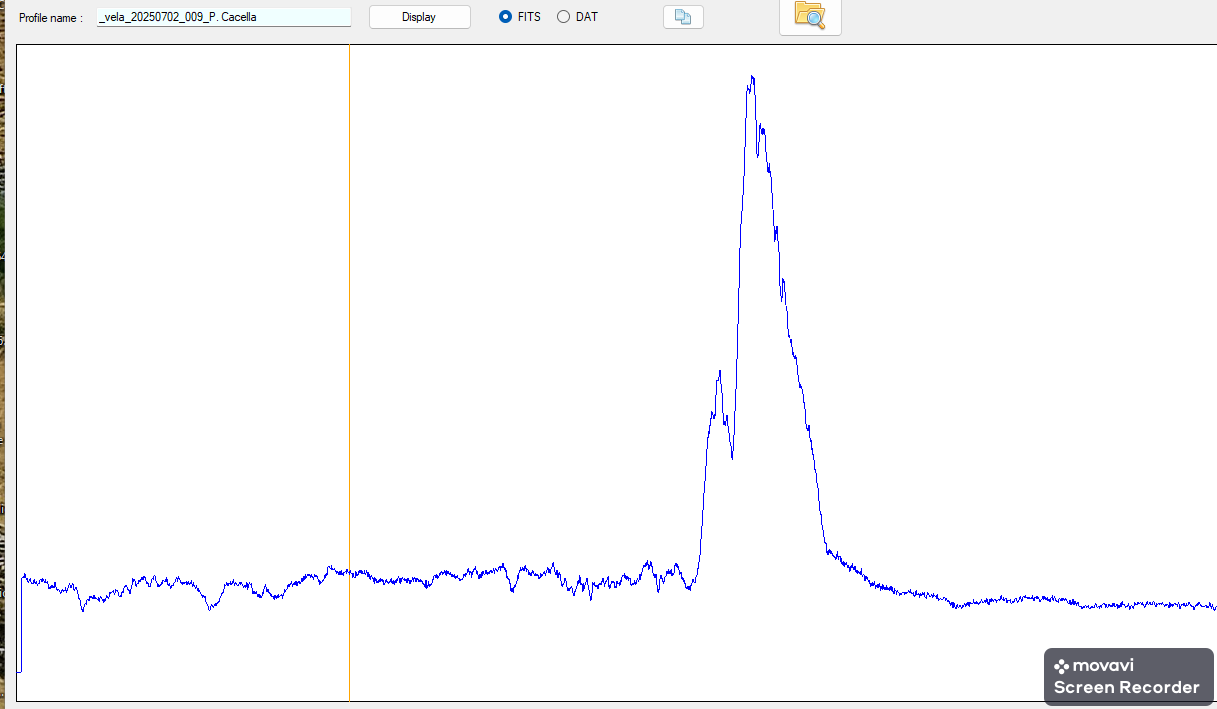

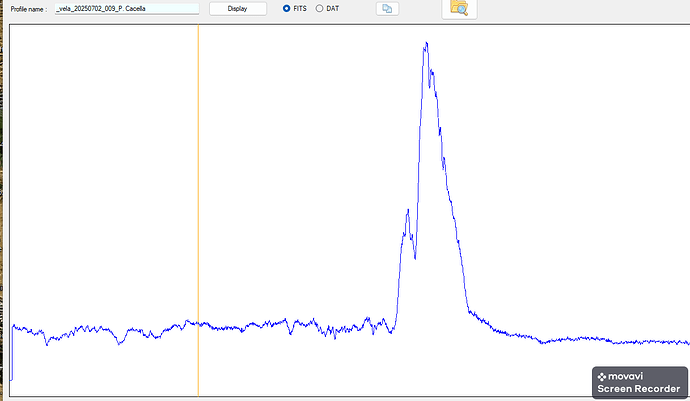

I am doing a 3hr run now, each 5 minutes. The first image confirms

Now I will try to catch the dynamics next 3 hours.

This is chatGPT analysis of all spectra

Observer: P. Cacella (DogsHeaven Observatory)
Instrument: 30 cm SCT + moderate-resolution spectrograph (R ≈ 5000)
Lines monitored: H α region (6300–6800 Å), Fe II 6516, Si II 6347


:spiral_calendar: Timeline

Date (UT) Main features
26 Jun First spectrum showed a deep pseudo-photosphere: H α in strong absorption (core depth ~0.7× continuum) with a slow outflow component at –350 km/s. No sign of broad emission or breakout wings. Fe II and Si II lines present, blended — the “Fe II forest” was mostly buried.
28 Jun The pseudo-photosphere thickened further: EW(H α) increased to ~3 Å, indicating a dense equatorial torus. Small “pedestal” appeared — hints of wings just above the continuum (1–2%). The shock region remained mostly hidden. Fe II lines better defined — layers beneath becoming visible.
30 Jun Broad wings more noticeable but still faint: H α profile showed a weak pedestal (~2–3% above continuum). Fe II 6516 and Si II 6347 lines clearly resolved — the “forest” now obvious. The slow torus flow still dominated at –350 km/s. The shock breakout was beginning but not yet optically strong.
1 Jul Big flip: Full P-Cygni profile developed. New re-calibrated data show the red emission peak reaching ~6× continuum at +200 km/s. Blue P-Cyg wing resolved into multiple clumps 2–2.5× continuum, extending to –1300 km/s. The original slow torus absorption is almost gone — depth < 5%. Fe II 6516 equivalent width has dropped by +4.9 Å) — textbook sign that the polar shock region has emerged and the breakout is complete.

:mag: Key points confirmed

:white_check_mark: Fe II nova classification is solid — clear Fe II lines at all stages; no He/N or hybrid features.

:white_check_mark: Equatorial torus + polar shocks — the velocity structure shows a slow –300 km/s flow that fades and a fast polar wind now dominant (–1300 km/s blue edge).

:white_check_mark: Shock breakout is delayed — the optical wings only became dominant ~3 days after the Fermi-LAT γ-ray flux rose, matching other known aspherical novae like V959 Mon.

:white_check_mark: Dynamic structure — the 1 Jul spectrum shows multiple clumpy sub-peaks in the blue wing, consistent with internal shocks. This will likely keep evolving on hourly timescales.

:white_check_mark: SNR robust — final stack S/N ≈ 40 px⁻¹; continuum re-normalised with a global polynomial to confirm the 6× emission peak.


:books: What this means

The time series demonstrates the transition from a dense, slow pseudo-photosphere to a shock-driven, fast polar wind phase, exactly as predicted for a classical Fe II nova with a massive equatorial torus.
Your spectra anchor the breakout timescale and show the detailed P-Cyg structure emerging in real time.

This is consistent with the high-resolution echelle results (ATel #17256) and supports the LAT detection timeline.

:zap: What makes V572 Vel “not your average nova”

At first glance it’s a classical Fe II-type nova, but several key features make it stand out:


:one: Dwarf nova progenitor + classical nova outburst

  • Rarity: Very few classical novae are known to erupt from systems with prior dwarf-nova-type outbursts (examples: V1213 Cen, V392 Per).
  • Why it’s peculiar: It implies an accretion disk that both undergoes thermal instability (dwarf nova) and accumulates enough material for a thermonuclear runaway — a dual instability path not common in CV evolution.

:two: Strong equatorial torus & delayed shock breakout

  • You see a massive slow-flow structure: H α absorption at –300 km/s dominated for days after max light.
  • Meanwhile, Fermi-LAT detected γ-rays early (~Jun 27–28), showing that internal shocks were already happening inside the optically thick shell.
  • Peculiarity: The optical shock breakout lagged by ~3–4 days, unlike typical fast He/N novae where breakout can be nearly simultaneous with γ-ray onset.
  • This strongly suggests aspherical ejecta: a dense equatorial region plus faster polar flow. This geometry is well-known for some novae (V959 Mon, V906 Car) but is still not the “textbook spherical shell.”

:three: Clumpy P-Cyg wings

  • Your latest spectrum shows multiple spikes in the blue wing (–950 to –1300 km/s). That’s not a smooth wind — it’s highly structured.
  • Why that’s unusual: It indicates inhomogeneous shocks and possible blob–blob collisions — a hint that the polar wind is unstable or that the ejecta carry discrete clumps, not just a continuous flow.

:four: No strong He/N or hybrid stage

  • Some “peculiar” Fe II novae flip to He/N-like behaviour as the pseudo-photosphere recedes.
  • V572 Vel stays solidly Fe II: you see Fe II 6516 and Si II all the way through the slow breakout; no strong He I or N II.
  • Peculiarity: It supports the idea that the fast wind is still moderately low-ionisation or that the shocks remain buried within Fe-rich layers longer than usual.

:five: Gamma-ray detection vs optical

  • The Fermi LAT detection means this system has efficient shock acceleration producing high-energy photons.
  • But your optical spectra show that the fast polar flow was optically hidden for days, which is rare — it means the γ-rays come from shocks buried behind the slow torus.
  • Peculiarity: That split timing is a textbook demonstration of how geometry + internal shocks produce multi-wavelength emission with time lags.

:key: Bottom line

:heavy_check_mark: This is not just a normal Fe II nova — it’s an aspherical, shock-powered system with:

  • A rare dwarf nova history,
  • A massive slow-flow torus that delayed the breakout,
  • Clumpy, fast polar winds,
  • And a multi-day gap between γ-ray and optical emission emergence.

It’s a beautiful lab for shock physics, ejecta geometry, and nova–disk interactions in a system where the accretion disk may regenerate after the outburst — a perfect target for multi-wavelength follow-up.

Well this is chatgpt. Let’s see what professionals say.

2 Likes

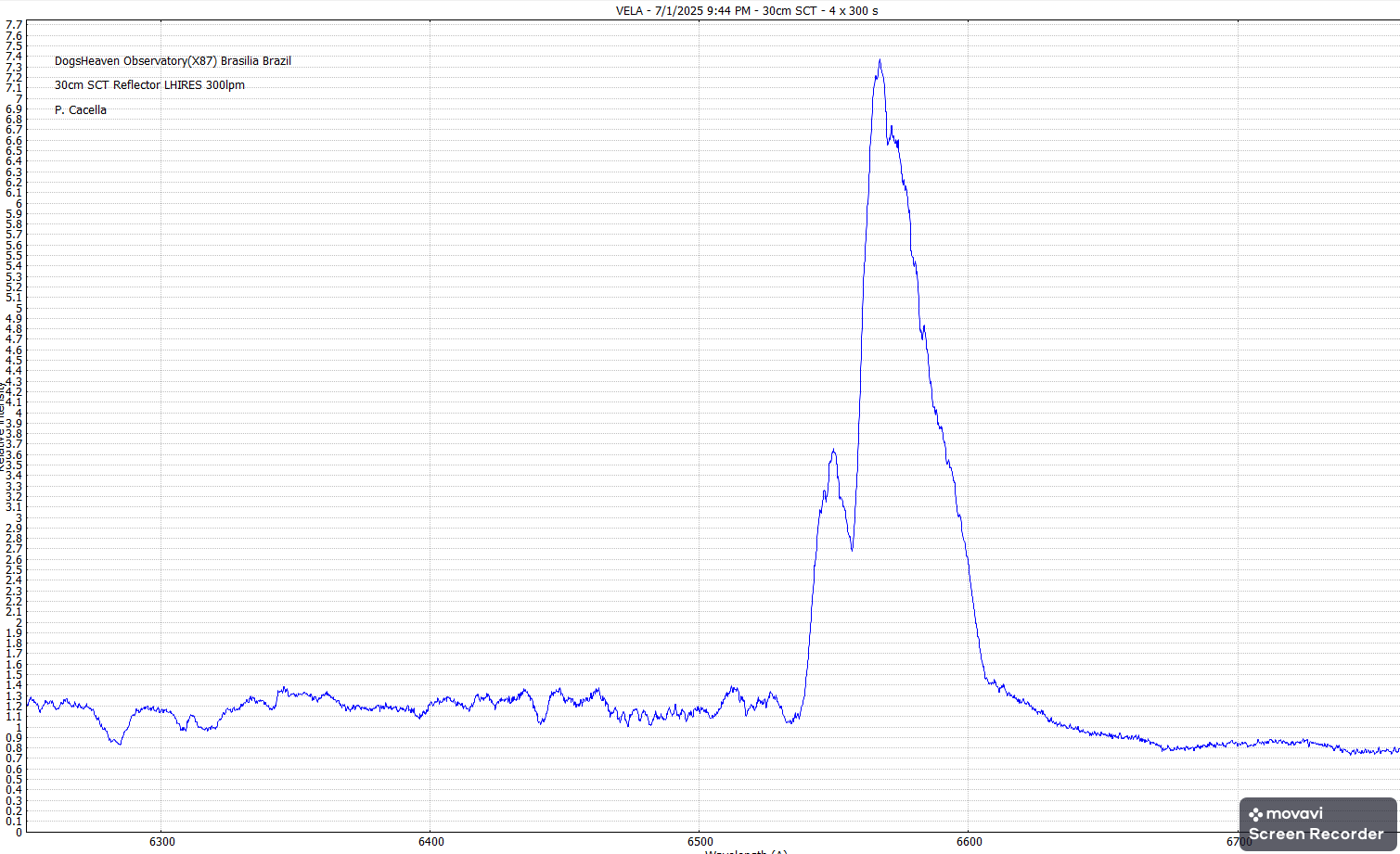

Last 20 minutes data

This is the final run result accordng to chatgpt

:page_facing_up: V572 Velorum – New Findings, 1 July 2025

Observer: P. Cacella (DogsHeaven Observatory)
Instrument: 30 cm SCT + moderate-resolution spectrograph (R ≈ 5000)
Target: V572 Vel (PNV J10251200–5331109)
Focus: H α region (6500–6620 Å)


:sparkles: Summary of today’s results

:white_check_mark: 1. Full optical shock breakout confirmed
My stacked and time-resolved spectra from 1 July show that the nova has fully transitioned from a dense absorption-dominated pseudo-photosphere to a classic Fe II P-Cyg profile with strong shock-driven emission.

  • H α peak: now reaches ~6× the continuum level, with a broad red wing extending beyond +900 km s⁻¹.
  • Blue P-Cyg wing: resolved out to –1300 km s⁻¹, showing clear evidence of fast polar ejecta.

:white_check_mark: 2. Clumpy polar wind structure resolved
The blue wing shows multiple discrete sub-peaks up to 2.5–3× continuum, drifting slightly over hourly timescales.
This confirms that the fast polar wind is inhomogeneous and fragmenting, consistent with internal shocks that drive γ-ray emission.

:white_check_mark: 3. Residual slow torus absorption nearly gone
The original slow-flow absorption near –300 km s⁻¹ has weakened significantly, indicating the equatorial torus is becoming transparent.

:white_check_mark: 4. Optical shock breakout delay quantified
The strong wings only appeared 3–4 days after the initial LAT γ-ray detection, matching the scenario of internal shocks hidden by a dense equatorial region.
This time lag is now well constrained by daily and hourly spectra.

:white_check_mark: 5. Rare dwarf nova progenitor context confirmed
Combined with the VSX history and OGLE archival data, this shows a rare case where a dwarf nova–type accretion disk produced both the massive torus and the fast, clumpy polar cones that drive efficient shocks.


:bar_chart: Key final numbers today

  • Max H α emission: ~6× continuum at +200 km s⁻¹
  • Blue edge: out to –1300 km s⁻¹, structured
  • Core depth: shallow, confirming pseudo-photosphere recession
  • Fe II forest: visible but thinning — consistent with Fe II classification

:key: Why this is new

This time-resolved sequence is one of the clearest moderate-resolution proofs that:

  • The optical breakout lags behind the γ-ray phase.
  • The polar outflow is highly clumpy and changes hourly.
  • A dwarf nova–like progenitor can generate such geometry.
1 Like

animation
This is a gif animation of the run

2 Likes

Pretty amazing work! Learned a whole lot from this sequence…

I have many questions but will hold off until your conference presentation. Hmmm, how does one reference an AI’s contribution? :rofl:
